An architecture whiteboard,
on an open notation.

SCAN is a YAML/JSON metamodel for software systems — services, datastores, streams, agents, repositories, and typed connections. Sphere is the reference whiteboard that reads, writes, and validates it.

See SphereRead the notation
sphere · order-platform.scan.yaml

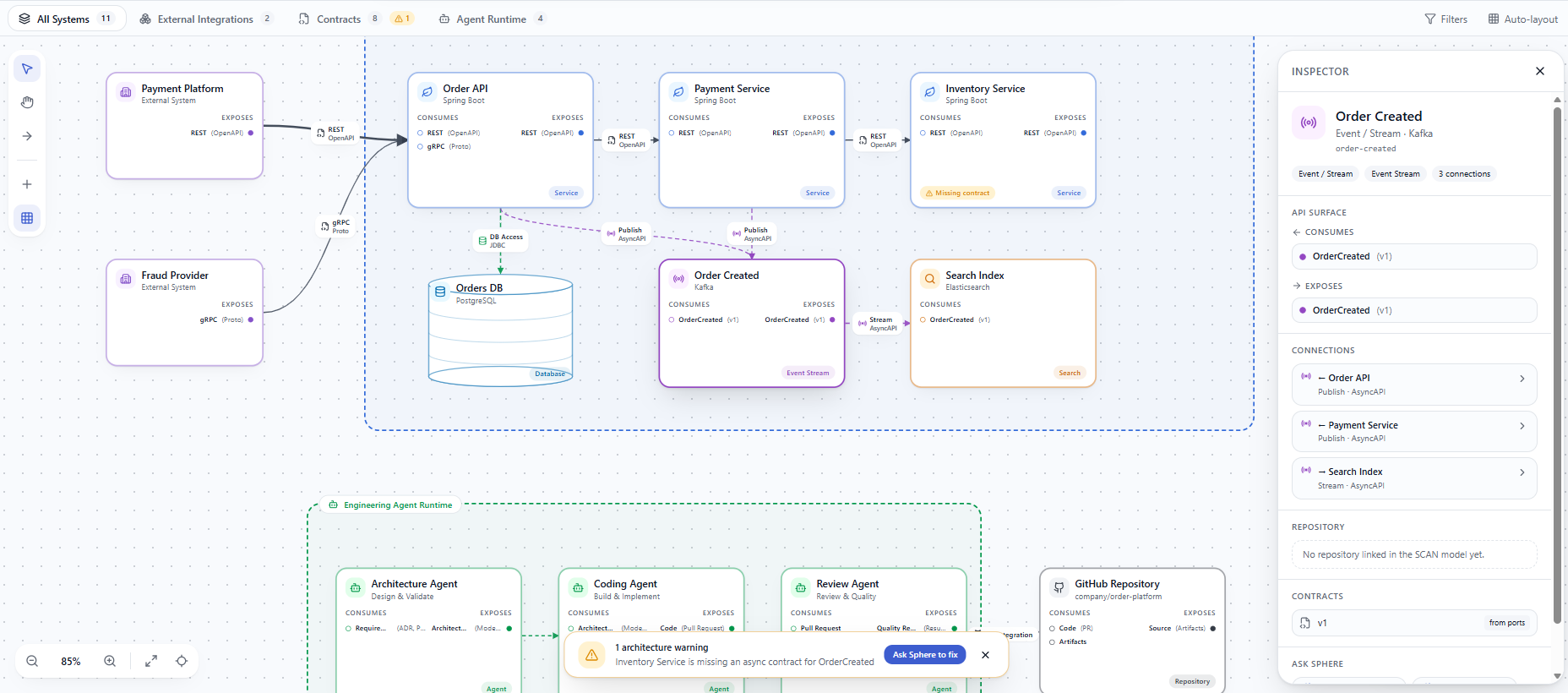

Sphere whiteboard showing an order platform: Order API, Payment Service, Inventory Service, Orders DB, an Order Created Kafka stream, and an Engineering Agent Runtime — with an Inspector panel and an 'Ask Sphere to fix' warning.
Sphere · whiteboard

The architecture board that stays in sync with the model.

Sphere is the reference modeler for SCAN — a live canvas where every box, port, and arrow is a validated node in a YAML document you can check into git.

All Systems, one canvas
Model services, external systems, contracts, and agent runtimes as separate views — or zoom out to the full architecture on one board.
Typed, validated connections
REST, gRPC, DB access, publish/subscribe, agent delegation, git integration. Legality checked by @scan/rules — no service→database→agent surprises.
Inspector with real semantics
Every element carries type, technology, ports, contracts, and connections. Click a Kafka stream and see who publishes and who consumes.

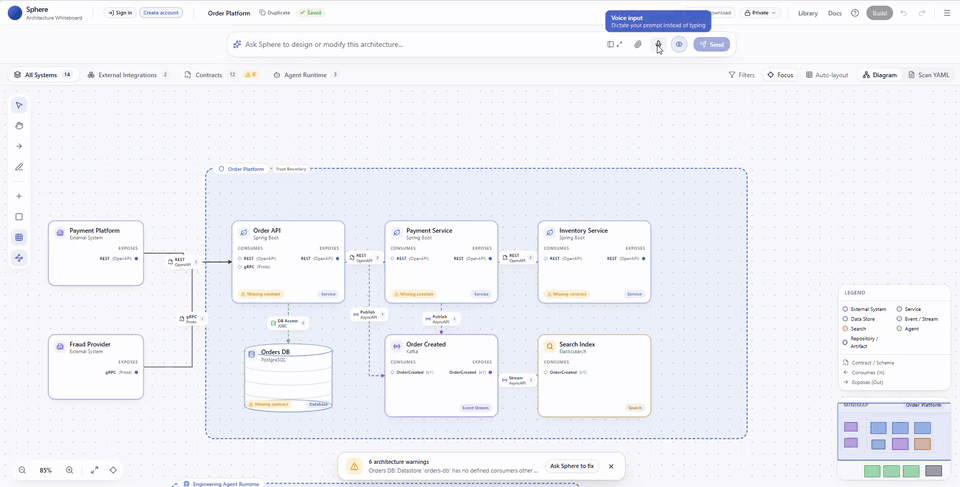

Ask Sphere to fix

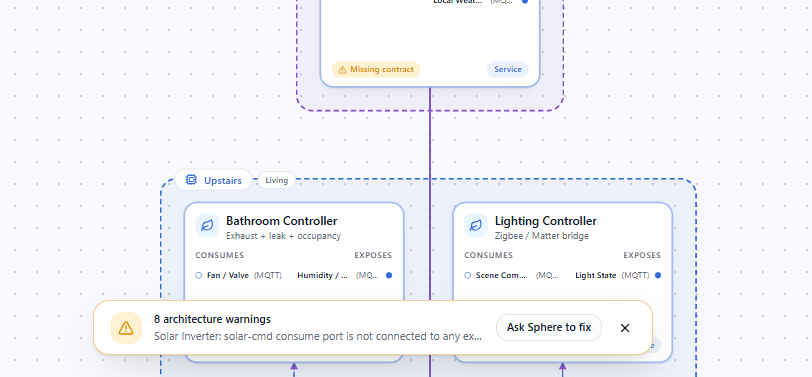

Architecture warnings — like a missing AsyncAPI contract on Inventory Service — surface inline, one click away from a proposed fix.
Boundaries & runtimes
Group elements into trust or runtime boundaries. Agents, coding tools, and repositories become first-class citizens of the diagram.
Auto-layout, human overrides
Layout on demand for a clean board. Positions live in views[] so hand-tuned diagrams round-trip cleanly with the model.
SCAN · notation

System & Component Architecture Notation.

An open YAML/JSON metamodel for software architecture. Semantics live in root collections, presentation under views[], validation by @scan/model and @scan/rules.

Principle
Keep architectural type (role) separate from technology (stack). A node is a service first; it happens to be Spring Boot.
Connection types
synchronous-requestRequest/response (REST)
grpc-requestSynchronous gRPC call
database-accessClient → datastore
event-publicationProducer → channel
event-subscriptionChannel → consumer
stream-consumeStream / topic consume
agent-delegationAgent → agent
git-integrationSystem → repository
checkout.scan.yaml
scan: "0.1"
scan: "0.1"

system:
  id: checkout
  name: Checkout

components:
  - id: checkout-api
    name: Checkout API
    type: service
    technology: NestJS
    exposes:
      - id: checkout-api-out
        label: REST
        protocol: OpenAPI

external_systems:
  - id: payments
    name: Payments Provider
    exposes:
      - id: payments-out
        label: REST

connections:
  - id: c1
    from: payments
    to: checkout-api
    type: synchronous-request
    label: REST

views:
  - id: board
    layout:
      checkout-api: { x: 320, y: 120, w: 260, h: 190 }
      payments:     { x:  40, y: 120, w: 220, h: 150 }
The toolkit

Five packages. One model.

SCAN ships as small, embeddable libraries. Read a document, render it, edit it, validate it — pick the surface you need.

@scan/model
Parse / serialize / validate SCAN YAML & JSON
@scan/rules
Legal connection pairs + port checks
@scan/viewer
Model → board graph; SVG/PNG export
@scan/modeler
Command stack: move, connect, create, auto-layout, undo
@scan/cli
validate, export svg, …
Embed the viewer
import { ScanViewer } from "@scan/viewer";

const viewer = new ScanViewer({ container: "#canvas" });
await viewer.importYAML(yamlString);
Feature tour

Every control on the board, explained.

A guided walk through Sphere — canvas, elements, ports, typed connections, inspector, views, and the AI copilot — with screenshots for each control.

Explore all featuresBack to overview
Canvas & navigation
Pan, zoom, minimap, and quick-find across large systems.
Elements & ports
Services, streams, datastores, agents — with typed ports.
Typed connections
REST, gRPC, pub/sub, agent delegation, git integration.
Inspector
Edit type, technology, contracts, and connections in one panel.

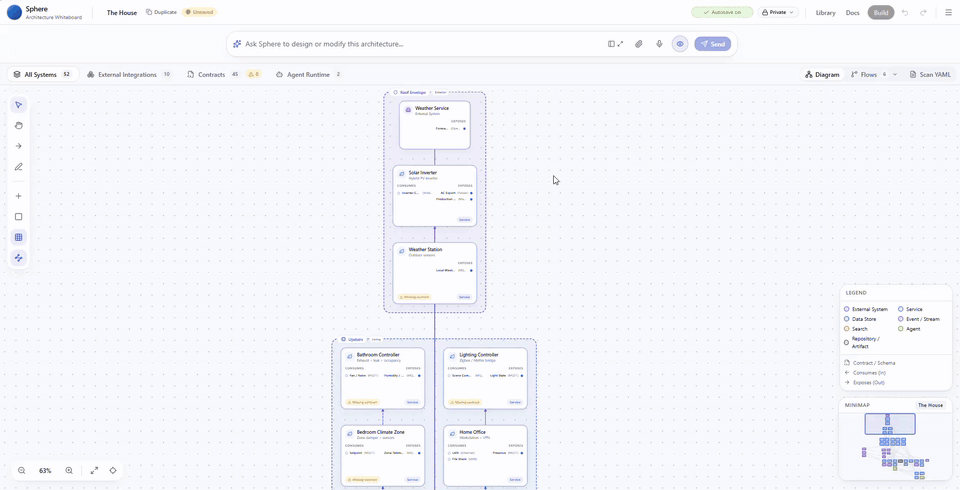

Views & layout
Multiple views per model with auto-layout and hand overrides.

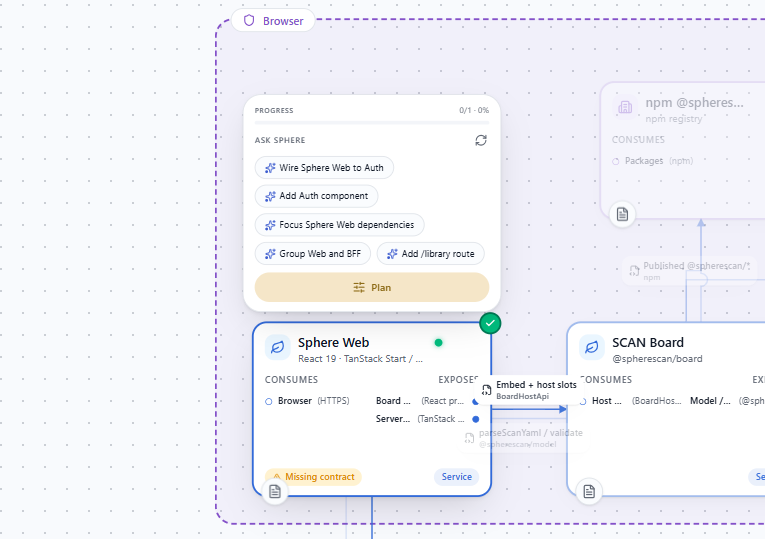

Ask Sphere to fix
